رله کمکی D-Series 12VDC 2CO وايدمولر آلمان
تماس بگیرید
وایدمولر
Catalog | کاتالوگ
Type DRM270012LT.
Order No. 7760056068.

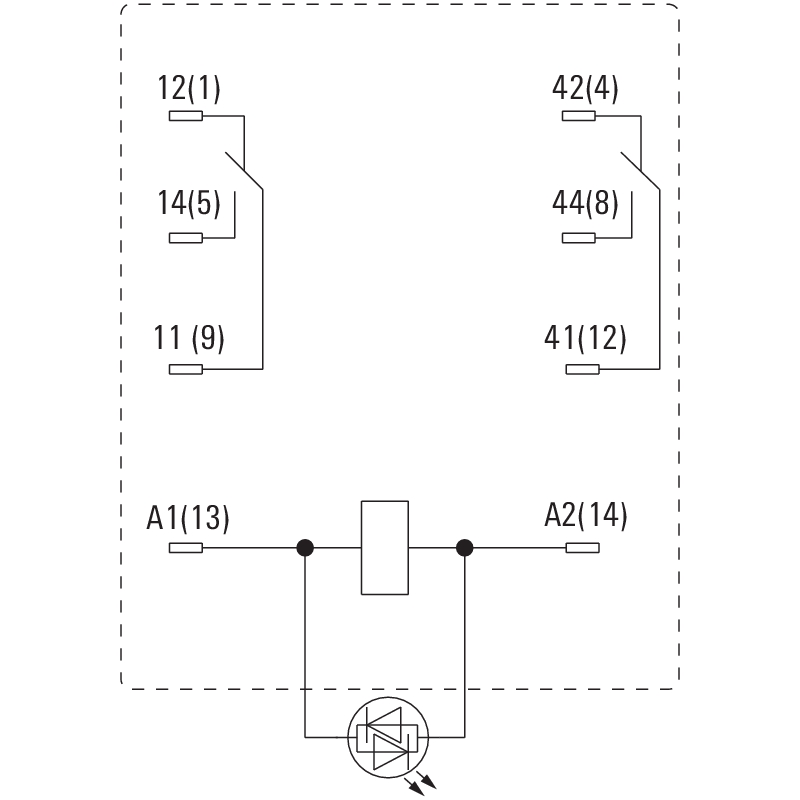

Version D-SERIES DRM, Relay, No. of contacts: 2, CO contact with test button, AgNi 0,15 µm Au, Rated control voltage: 12 V DC,. Continuous current: 10 A, Plug-in connection.
GTIN (EAN) 4032248855872.
Qty. 20 pc(s).
Availability Delivery date on request.
Width 21 mm.Width (inches) 0.827 inch.
Height 27.4 mm.
Height (inches) 1.079 inch.
Depth 35.7 mm.
Depth (inches) 1.406 inch.
Net weight 35.3 g.
Humidity 35…85 % rel. humidity, no condensation.
Operating temperature, max. 60 °C.
Operating temperature, min. -40 °C.
Storage temperature, max. 70 °C.
Storage temperature, min. -40 °C.
Operating temperature -40 °C…60 °C.
Storage temperature -40 °C…70 °C.
Rated control voltage 12 V DC.
Rated current DC 75 mA.
Power rating 0.9 W.
Pull-in/drop-out voltage, typ. 9 V / 1.2 V DC.
Coil resistance 160 ? ± 10 %.
Status indicator Green LED.
Rated switching voltage 250 V AC.
Max. switching voltage, AC 250 V.
Continuous current 10 A.
Inrush current 20 A / 50 ms.
AC switching capacity (resistive), max. 2500 VA.
DC switching capacity (resistive), max. 240 W @ 24 V.
Switch-on delay < 20 ms.
Switch-off delay < 20 ms.
Min. switching power 10 mA @ 12 V, 100 mA @ 5 V.
Max. switching frequency at rated load 0.1 Hz.
Contact type 2 CO contact with test button (AgNi 0,15 µm Au).
Contact resistance ? 50 m?
Mechanical service life 20 x 106 switching cycles.
Test button yes (lockable).
Mechanical switch position indicator Yes.
Colour Transparent.
UL 94 flammability rating V-0.
Rated voltage 250 V.
Surge voltage category III.
Pollution severity 2.
Protection degree IP20.
Dielectric strength input – output 1.8 kVeff / 1 min.
Creepage and clearance distance input – output ? 5.5 mm.
Dielectric strength of neighbouring contacts 1 kVeff / 1 min.
Dielectric strength of open contact 1 kVeff / 1 min.
Impulse withstand voltage 6 kV (1.2/50 µs).
Standards IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 A1:2011, UL 508.
Certificate No. (cURus) E312083.
