رله RIDERSERIES 230VAC 2CO وايدمولر آلمان

رله وایدمولر
Catalog | کاتالوگ

Width 13 mm
Width (inches) 0.512 inch
Height 29 mm
Height (inches) 1.142 inch
Depth 25.6 mm
Depth (inches) 1.008 inch
Net weight 15.9 g
Humidity 40 °C / 93 % rel. humidity, no condensation
Operating temperature, max. 70 °C
Operating temperature, min. -40 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -40 °C…70 °C
Storage temperature -40 °C…85 °C
Rated control voltage 230 V AC
Rated current AC 3.2 mA
Power rating 0.75 VA
Pull-in/drop-out voltage, typ. 172.5 V / 34.5 V AC
Coil resistance 32500 ? ± 15 %
Rated switching voltage 240 V AC
Max. switching voltage, AC 400 V
Continuous current 8 A
Inrush current 15 A / 4 s
AC switching capacity (resistive), max. 2000 VA

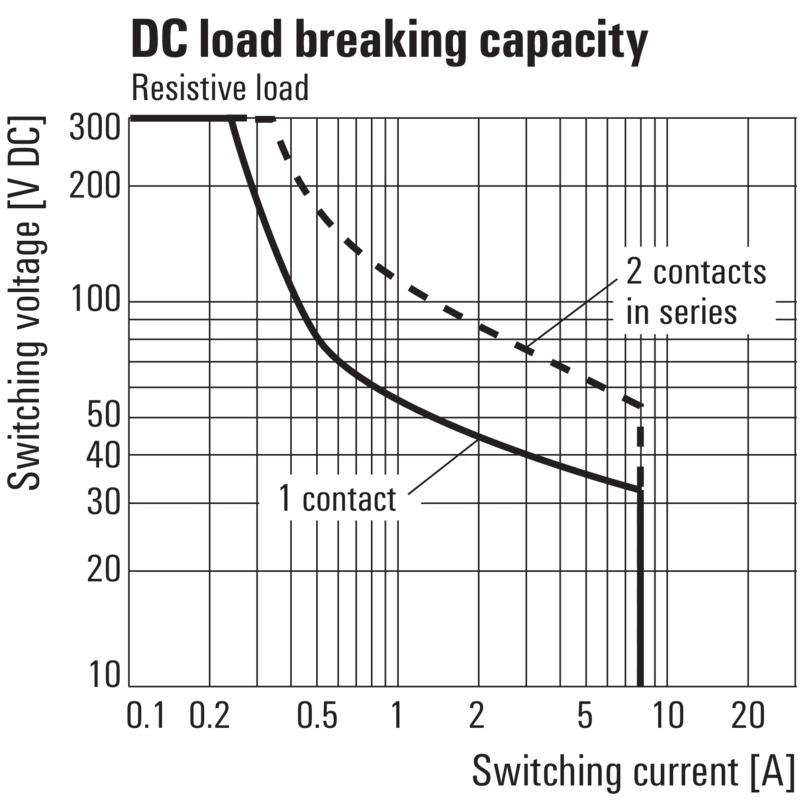

DC switching capacity (resistive), max. 192 W @ 24 V
Switch-on delay ? 10 ms
Switch-off delay ? 6 ms
Min. switching power 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
Max. switching frequency at rated load 0.1 Hz

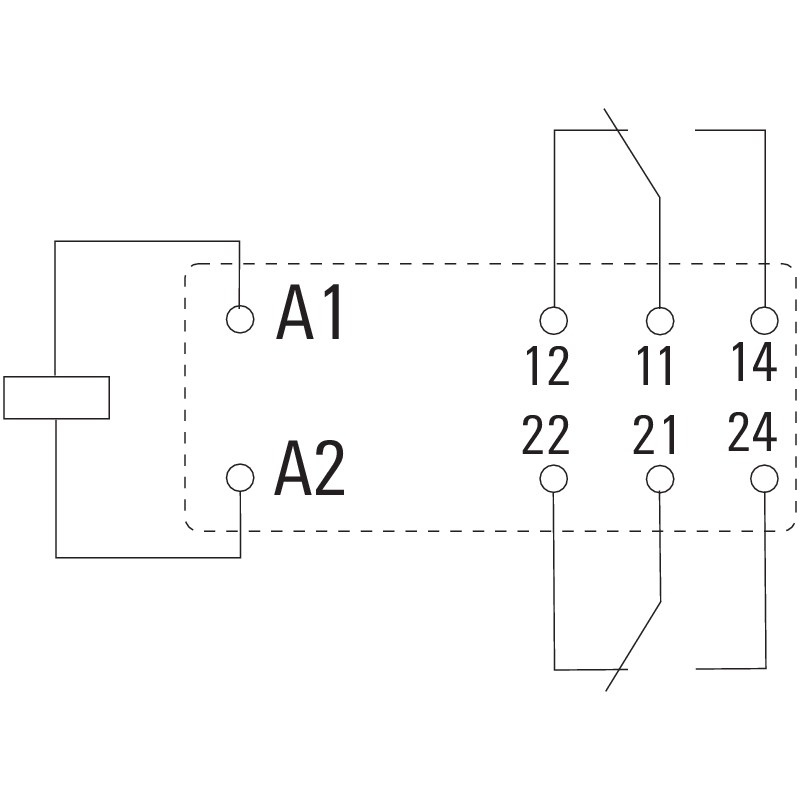

Contact type 2 CO contact (AgNi 90/10)
Mechanical service life AC coil 5 x 106 Switch. cycles, DC coil 10 x 106 Switch. cycles
Test button No
Mechanical switch position indicator No
Colour Transparent
UL 94 flammability rating V-2
Rated voltage 250 V
Surge voltage category III
Pollution severity 2
Insulating material group IIIa
Dielectric strength input – output 5 kVeff / 1min
Creepage and clearance distance input – output ? 8 mm
Dielectric strength of neighbouring contacts 2.5 KVeff / 1 min.
Dielectric strength of open contact 1 kVeff / 1 min
Impulse withstand voltage 5 kV (1.2/50 µs)
Standards IEC 61810-1, UL508
Certificate No. (CSA) 249409-2426937
Certificate No. (cURus) E224238
