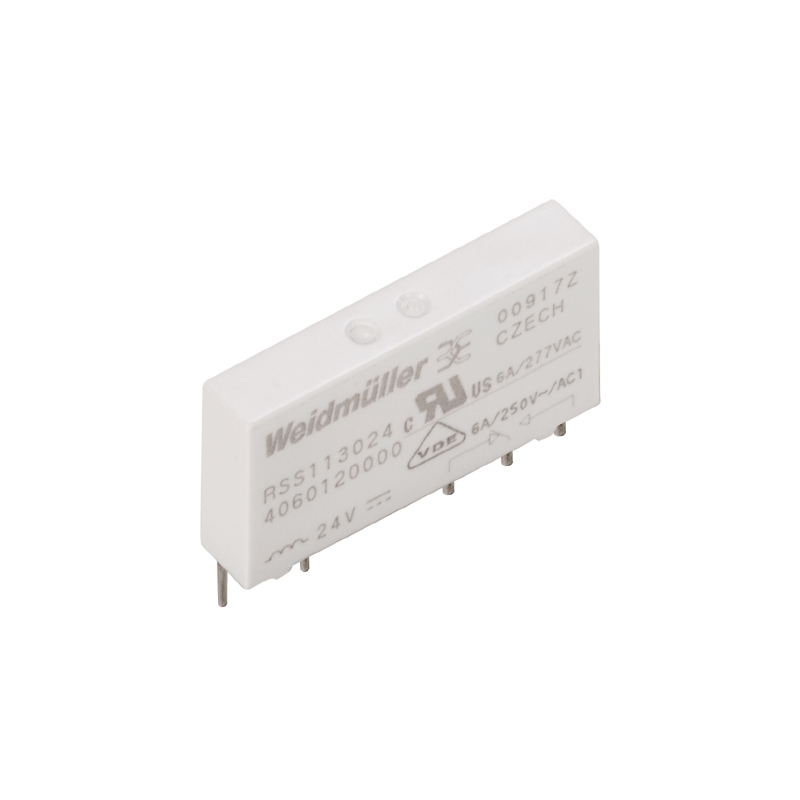

رله پی ال سي TERMSERIES 60VDC 1CO وایدمولر آلمان

رله وایدمولر
Catalog | کاتالوگ

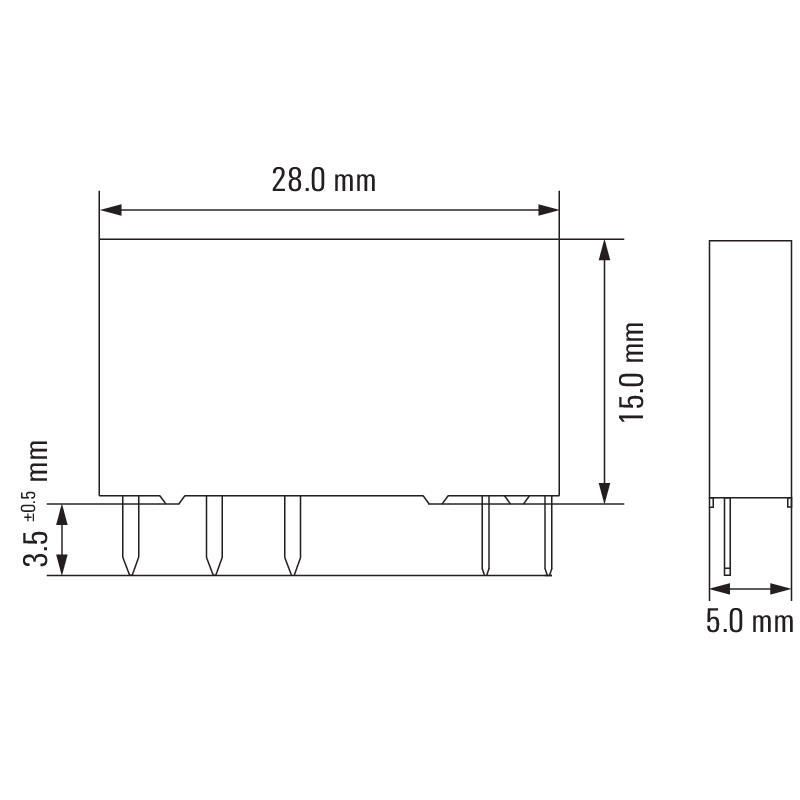

Width 5 mm
Width (inches) 0.197 inch
Height 28 mm
Height (inches) 1.102 inch
Depth 15 mm
Depth (inches) 0.591 inch
Net weight 6 g
Humidity 5…85 % rel. humidity, no condensation
Operating temperature, max. 85 °C
Operating temperature, min. -40 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -40 °C…85 °C
Storage temperature -40 °C…85 °C
Rated control voltage 60 V DC
Rated current DC 3 mA
Power rating 180 mW
Pull-in/drop-out voltage, typ. 42 V / 3 V DC
Coil resistance
Rated switching voltage 250 V AC
Max. switching voltage, AC 250 V
Max. switching voltage, DC 250 V
Continuous current 6 A
Inrush current 20 A / 20 ms
AC switching capacity (resistive), max. 1500 VA

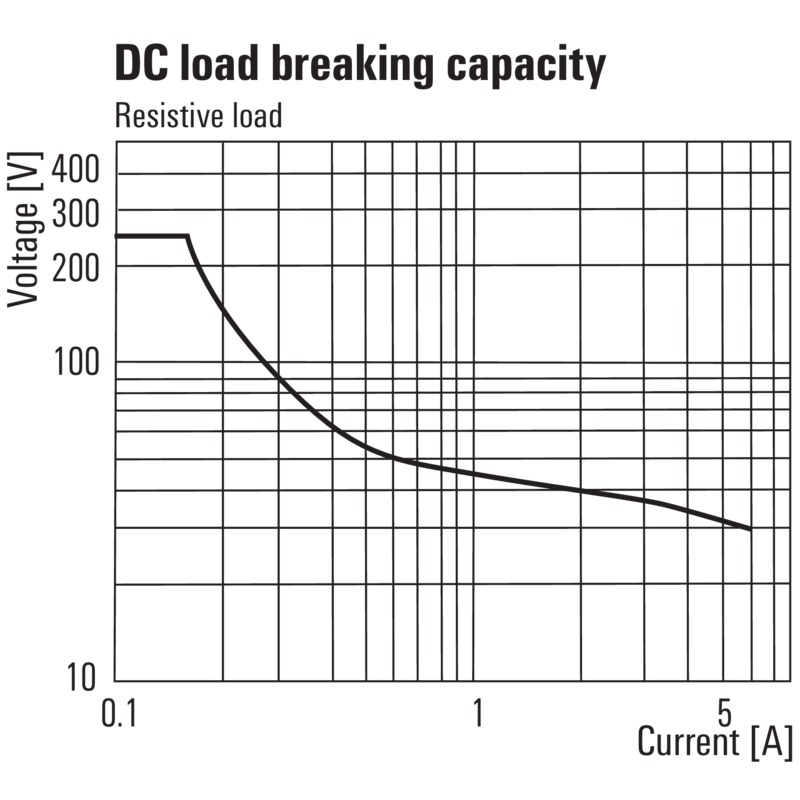

DC switching capacity (resistive), max. 144 W @ 24 V
Switch-on delay < 8 ms
Switch-off delay < 4 ms
Min. switching power 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V
Max. switching frequency at rated load 0.1 Hz

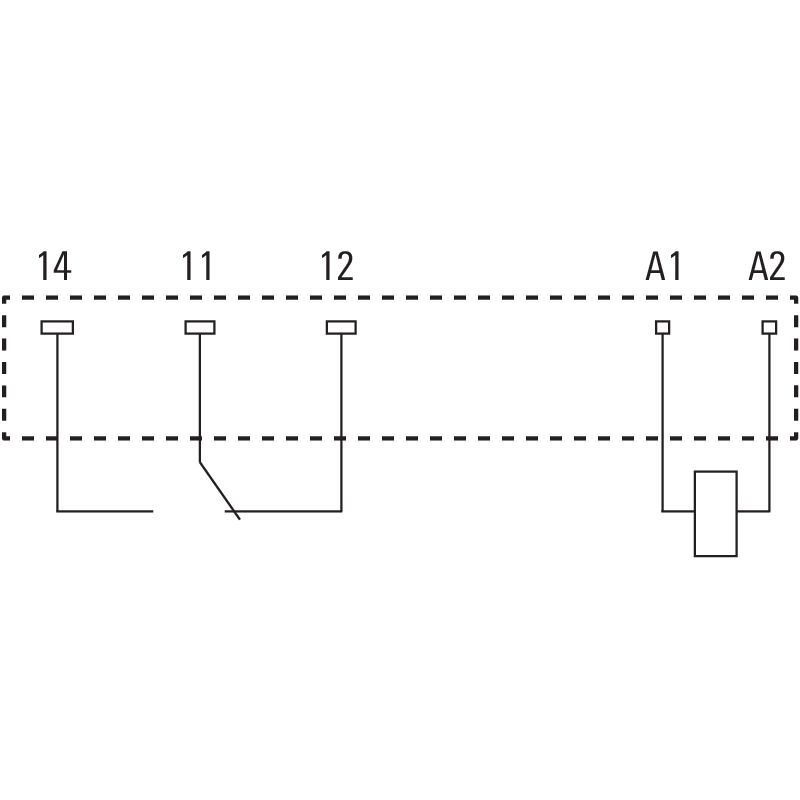

Contact type 1 CO contact (AgNi)

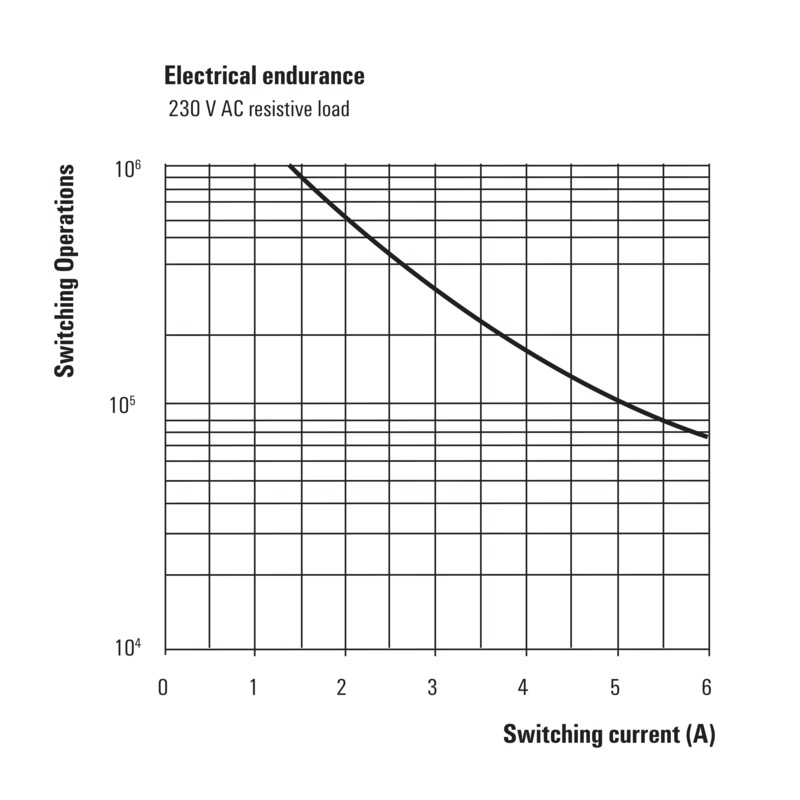

Mechanical service life 5 x 106 switching cycles
Test button No
Mechanical switch position indicator No
Colour White
UL 94 flammability rating V-0
Protection degree IP67
Dielectric strength input – output 4 kVeff / 1 min.
Creepage and clearance distance input – output ? 5.5 mm
Dielectric strength of open contact 1 kVeff / 1 min
Impulse withstand voltage 6 kV (1.2/50 µs)
Standards IEC 61810-1, UL508
Certificate No. (cURus) E223474
