رله کمکي D-Series 110VDC 4CO وايدمولر آلمان

Catalog | کاتالوگ
Width 21 mm
Width (inches) 0.827 inch
Height 27.4 mm
Height (inches) 1.079 inch
Depth 35.7 mm
Depth (inches) 1.406 inch
Net weight 35.5 g
Humidity 35…85 % rel. humidity, no condensation
Operating temperature, max. 60 °C
Operating temperature, min. -40 °C
Storage temperature, max. 70 °C
Storage temperature, min. -40 °C
Operating temperature -40 °C…60 °C
Storage temperature -40 °C…70 °C
Rated control voltage 110 V DC
Rated current DC 10 mA
Power rating 1.2 W
Pull-in/drop-out voltage, typ. 82.5 V / 11 V DC
Coil resistance 11000 ? ± 10 %
Status indicator Green LED
Rated switching voltage 250 V AC
Max. switching voltage, AC 250 V
Continuous current 5 A
Inrush current 10 A / 50 ms
AC switching capacity (resistive), max. 1250 VA
DC switching capacity (resistive), max. 120 W @ 24 V
Switch-on delay < 20 ms
Switch-off delay < 20 ms
Min. switching power 10 mA @ 12 V, 100 mA @ 5 V
Max. switching frequency at rated load 0.1 Hz

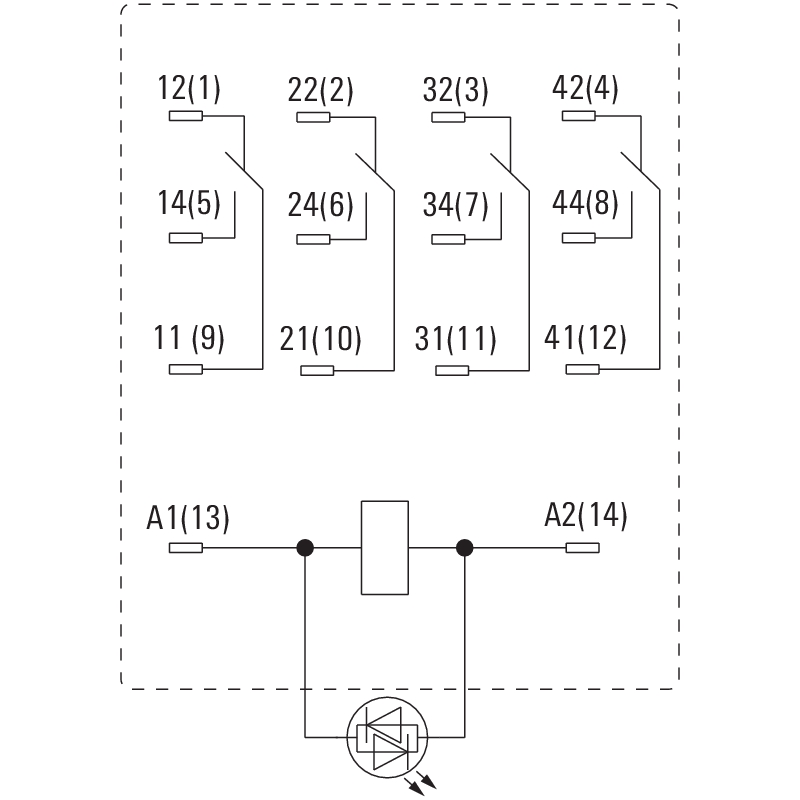

Contact type 4 CO contact with test button (AgNi 0,15 µm Au)
Contact resistance ? 50 m?
Mechanical service life 20 x 106 switching cycles
Test button yes (lockable)
Mechanical switch position indicator Yes
Colour Transparent
UL 94 flammability rating V-0

Rated voltage 250 V
Surge voltage category III
Pollution severity 2
Protection degree IP20
Dielectric strength input – output 1.8 kVeff / 1 min.
Creepage and clearance distance input – output ? 5.5 mm
Dielectric strength of neighbouring contacts 1 kVeff / 1 min
Dielectric strength of open contact 1 kVeff / 1 min
Impulse withstand voltage 6 kV (1.2/50 µs)
Standards IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 A1:2011, UL 508
Certificate No. (cURus) E312083
